COMNAV V7 Thermal Night & Infrared Camera

Thermal imaging technology captures faint image details in complete darkness, light fog, smog or low light environments. ComNav's advanced interpolation algorithm for temperature gradients and light intensifier modules results in crystal-clear stabilized monitoring. With sleek, compact designs and flexible mounting, the V series offers one-touch vision access and pan-tilt zoom control for easy and smooth positioning of the camera towards radar and AIS targets. For enhanced performance, the V Series are actively gyro stabilized, with the construction designed to perform in extreme environmental, shock and vibration agile conditions.

• High performance Gyro stabilized video images
• Ultra-sensitivity Shutterless Thermal Camera
• Light Intensifier electron tube camera
• 2x Ultralow Lux day camera with 40x zoom
• Objects seen through fog and smoke
• Search & Rescue, Law enforcement and Ice detection applications
• Radar slaving option
• Parallel view function
• Crystal clear thermal images in many different color schemes
• Continuous Pan and Tilt 360° provides seamless view coverage
• 100 Hz frame rate and 1000-line resolution give unmatched clarity
• DVI, VGA, HDMI, composite analog video output
• Marinized housing withstands the harshest conditions
• IP network control Interface capability
• 3 Axis Joystick control plus proportional Touch joystick

Overview



Specification


THERMAL IMAGING PERFORMANCE
Sensor Type:
Silicon CMOS Uncooled Chip,

640 x 480 pi xels, NETD < 40 mK @

Broadband, LWIR, 30 – 100 FPS
Field of View:
25° (Horizontal), 19° (Vertical)
Focal Length:
25/35 mm
E Zoom:
≤ 8X
Image Processing:
Video grabbing, recording, multi-view

Real-time, PIP, video-analysis
DAYLIGHT IMAGING SPECIFICATIONS
Detector Type:
Ultra low light Long range colour camera

- Superchip II SSNR
Resolution:
1000-line resolution
Minimum Illumination:
> 0.01 LUX @ colour
Zoom:
30 x optical zoom; 40 x digital zoom
FOV:
30° x 30°
LIGHT INTENSIFIER IMAGING SPECIFICATIONS
Detector Type:
SuperGen Intensifier Electron Tube SSNR
Spectral Range:
200 – 900 nm
Window Type:
Sapphire Glass
SYSTEM SPECIFICATIONS
Video Tracking:
Optional Features
Pan/Tilt Coverage:
Ultra High Response Gyro -360°

Continuous Pan and tilt @ 100°/s

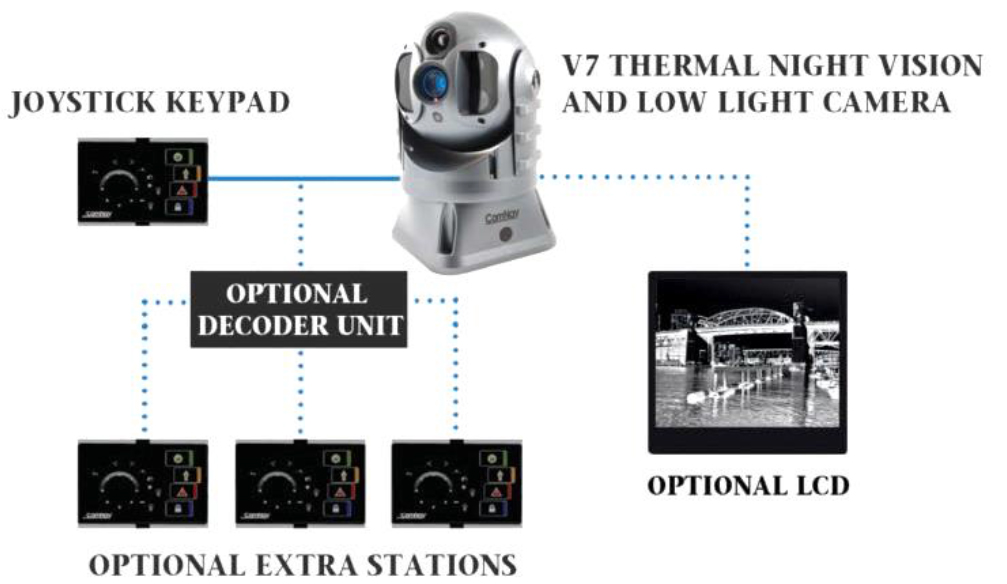

Integration Options:
IP control by APP remote controller (option)

Integration with industry standard multi-navigation

displays optional converter interfaces

NMEA 0183 serial communications for radar

tracking, gyrocompass communication, etc.

ComNav GNSS Rate Compass option
ENVIRONMENTAL
Operating Temp Range:
-20° to 60°Celsius, ultra-strength

lightweight aluminum alloy body,
deep anodized surface

treatment
Storage Temp Range:
-50° to 80° Celsius
Auto Window Defrost:
Self-cleaning windows, w/ electron beam

surface treatment

DIMENSIONS
Camera:
180 x 180 x 310 mm
Weight:
4.9 kg

POWER
Supply Voltage:
9-24 VDC
Power:
50 Watt
DETECTION RANGE
Human (Half body in water):
1+ km
Human (Full body):
2+ km
Vessel:
3+ km
