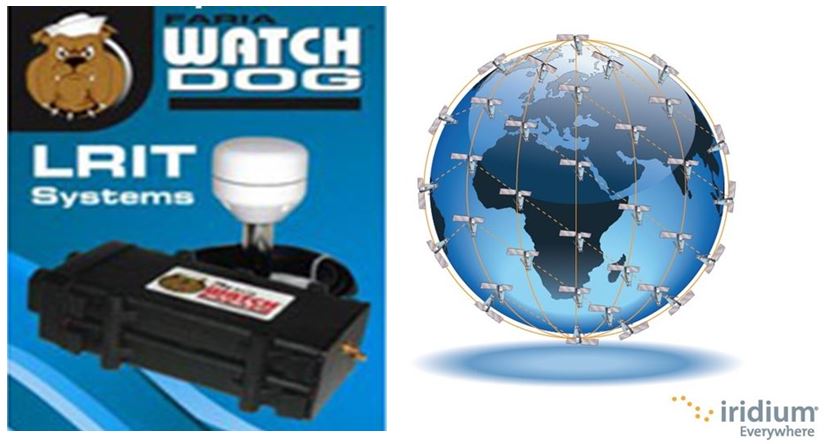

WatchDog 750 LRIT System
The Faria WatchDog 750 LRIT terminal is a state-of-the-art Iridium Satellite and 16-channel GPS Long Range Identification and Tracking System. The WatchDog is a rugged, low-power-drawing, compact and weather-resistant LRIT terminal. The WatchDog LRIT System comes as a complete kit including omni-directional Iridium and GPS antennas, antenna cables and mounts as well as all required harnessing for fast and easy installation. The WatchDog terminal is typically mounted in the wheelhouse and the antennas are mounted atop the vessels with a clear view of the sky. The Faria WatchDog 750 has passed Iridium's compliance and test requirements and meets all performance standards for LRIT systems outlined in IMO Resolution 81/210.
Tech Specs & Features
* WatchDog provides an Iridium LEO satellite interface with 16-channel GPS tracking.
* 9 to 36 VDC operation with built-in power management
* Reports data to any ASP with on-demand polling rates down to the required once-every-15-minutes
* Meets IMO requirements for A4 polar sea areas
* Length: 8.57 in.
* Width: 4.5 in.
* Height: 3 in.
* Weight: 3 lb
* Operating temperature range: -20°C to +85°C

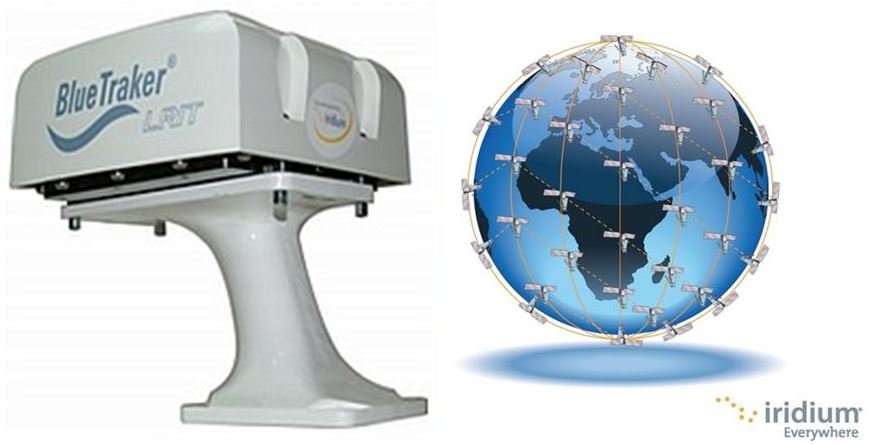

BlueTraker LRIT
BlueTraker® LRIT improves maritime safety and security by monitoring the movement of cargo and passenger ships with the best cutting edge technology. BlueTraker® LRIT is EMA’s product that is considered the benchmark for sophisticated automatic track analysis in the maritime domain. The key to an advanced LRIT solution is the BlueTraker® LRIT transponder. It is a mechanically and electrically fully integrated device, avoiding any need to connect additional external components for tracking and monitoring. All its components are packed inside a very robust, double shell housing. This level of integration combined with ‘open detect’ seals, protects from the theft or mis-application to which "cable rich" modular devices are vulnerable.
How it Works
Fleet monitoring is managed through connectivity of three key elements:
BlueTraker® LRIT transponder for ships
BlueTraker® LRIT is a wireless gateway with an embedded GPS receiver and antennas. BlueTraker® LRIT is used for transmission of Automatic Position Report via Iridium's truly global satellite network. This robust tracking device is installed above the deck as no climatic environment is too tough for the BlueTraker® LRIT.
Telematic data delivery via Communication service provider (CSP)
After processing, the server sends data via international data exchange to LRIT monitoring software. This mapping and reporting software application resides at flag data center premises. Data is therefore sent using internet and Web Services Protocols.
Ship monitoring at Data Centre (DC)
LRIT monitoring application: User-friendly fleet monitoring software which processes and displays data about your ship on the map and generates reports for the flag DC.The onboard BlueTraker®LRIT device collects ship positions using GPS satellite signals and sends them together with the identity of the ship, date and time of the position to the collecting telematic data server via Iridium's truly global satellite network. The telematic data server processes the received data and delivers it in the correct format to the DC monitoring software. Every piece of important information about the monitored ship is displayed on the map ready for fleet management decisions. The BlueTraker®LRIT transponder offers bidirectional communication to and from the DC and allows the monitoring authority to poll ship information in real time.
Tech Specs & Features
* Complete coverage system for all Sea areas including polar Sea area above 70 degrees latitude.
* 100% Above the Deck installation
* Power Supply load dump protected to 250 V DC
* Extended Power Supply cable run up to 100 m
* Ready to operate in ARCTIC areas with special (optional) functionality: the BlueTraker®LRIT ARCTIC is operable down to -55 degrees Centigrade
* Tracking, monitoring control and surveillance of ships
* Simple, user-friendly LRIT combination of devices and services
* High-quality, cutting-edge technology
* Flexible service options for optimized monthly costs
* External power supply: 9V – 36 V DC / 0.5 A
* CPU and memory: Philips/ARM based
* Integrated antennas: Iridium, GPS
* Installation: External-mast, roll-bar, etc.
* Mounting accessories: UniMount, MastMount, TowerMount
* Dimensions (w x h x l): 198 x 67 x 198 mm (7.80 x 2.64 x 7.80 in.)
* Weight incl. batteries: 1100 g (38.83 oz)
Sirius One LRIT
The Sirius One LRIT is an iridium tracking device compliant with the LRIT regulation.
The beacon offers a worldwide coverage capability and has been designed to operate in harsh environment, especially in Polar zones. Sirius One is as simple as tracking should be: a fully self¬contained unit that will keep you tracked - even without external power.
Tech Specs & Features
- Antenna w. baterry and Wi-Fi
- Mounting bracket SIR 1301
- 20-meter antenna cable straight connector
* Length: 212 mm
* Width: 151 mm
* Height: 117 mm
* Weight: Less than 1.2 kg
* Operating temperature range: –20°C to +50°C
