Iridium Pilot

Iridium Pilot

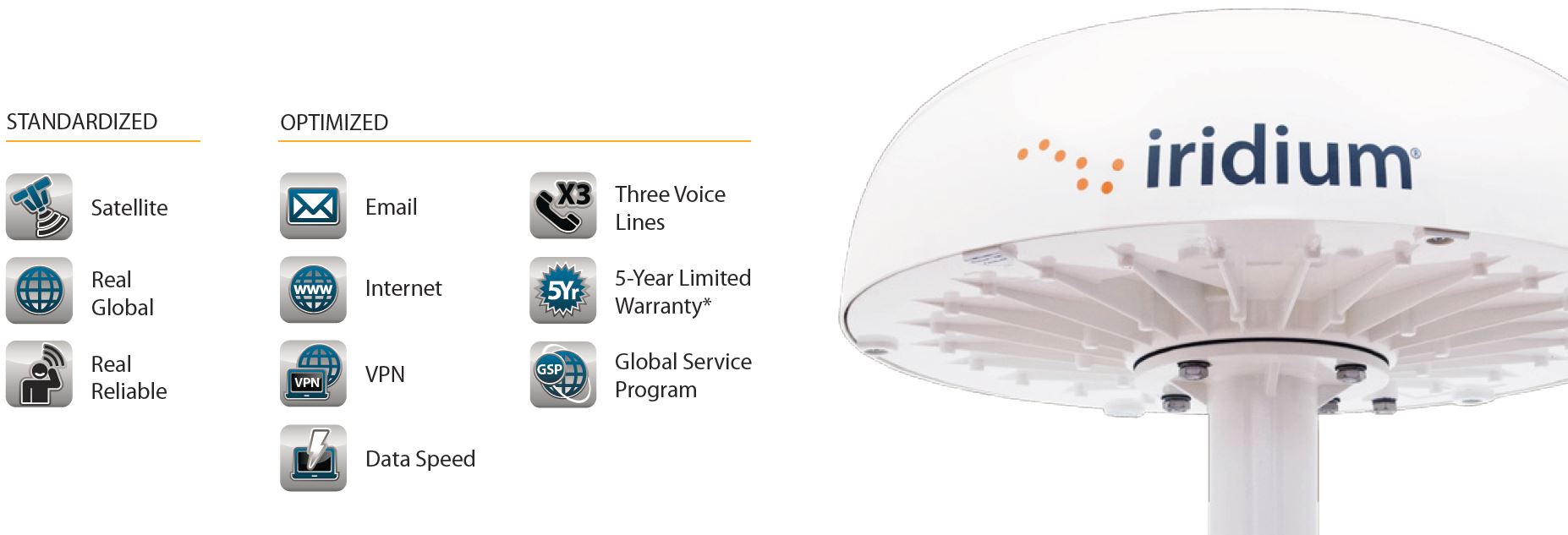

Powered by the Iridum OpenPort, broadband service, Iridium Pilot offers global voice and IP connectivity at speeds up to 128 Kbps anywhere at sea through
an optimized and durable antenna. With an always-on Ethernet connection and three voice lines that can be used simultaneously, Iridium Pilot delivers cost-effective
and reliable data and voice communications. The product is ideal for merchant, shipping fleets, fishing and yachting vessels.

Tech Specs & Features :
* Pole-to-pole global coverage
* Simultaneous voice and high-speed IP data
* Solid state - no moving parts
* Global Service Program (includes 5-year limited warranty*)
* Easy to install

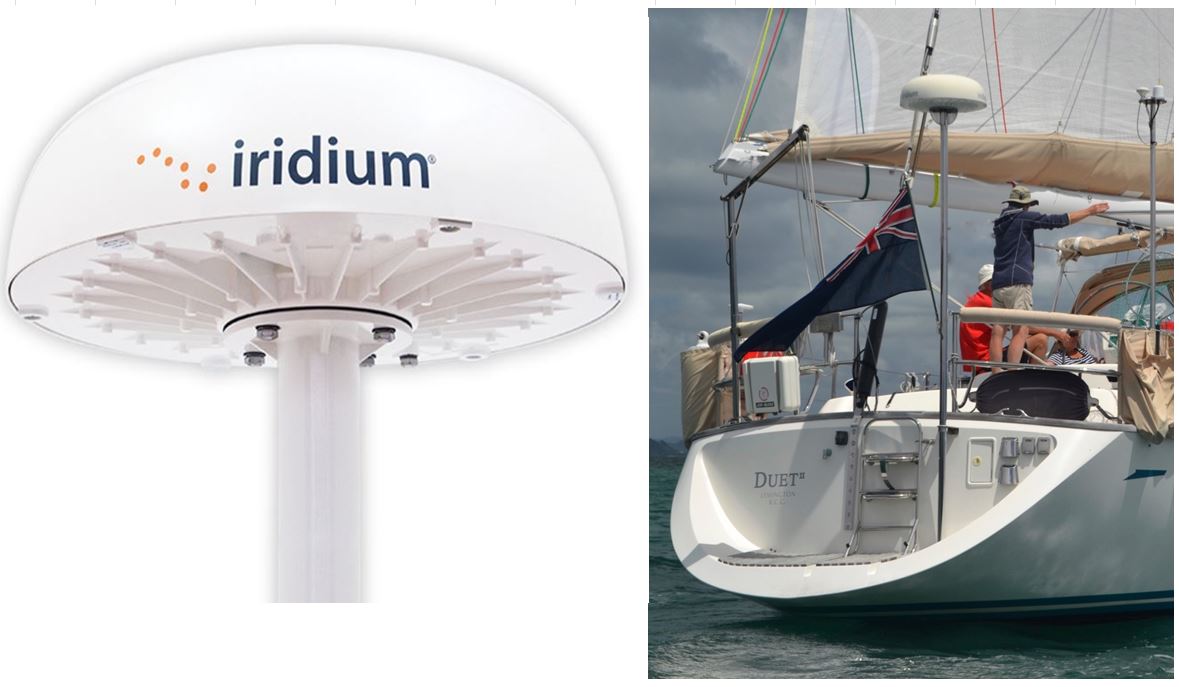

Above Decks Equipment (ADE)

* Height: 8.0 in (203 mm)
* Diameter: 22.44 in (570 mm)
* Weight: 27.5 lb (12.5 kg)
* Antenna type: Six dual element azimuth and one zenith element array
* Steering: Electronically switched and phase steered, horizon to horizon

Below Decks Equipment (BDE)

* Height: 7.78 in (200 mm)
* Width: 9.84 in (250 mm)
* Depth: 2.17 in (55 mm)
* Weight: 2.98 lb (1.35 kg)

Data
* Up to 134 kbps bidirectional with Iridium OpenPort broadband service

Telephony
* Three independent voice lines
* Configurable for captain, bridge, or crew calling

Coverage
* Global, pole-to-pole
