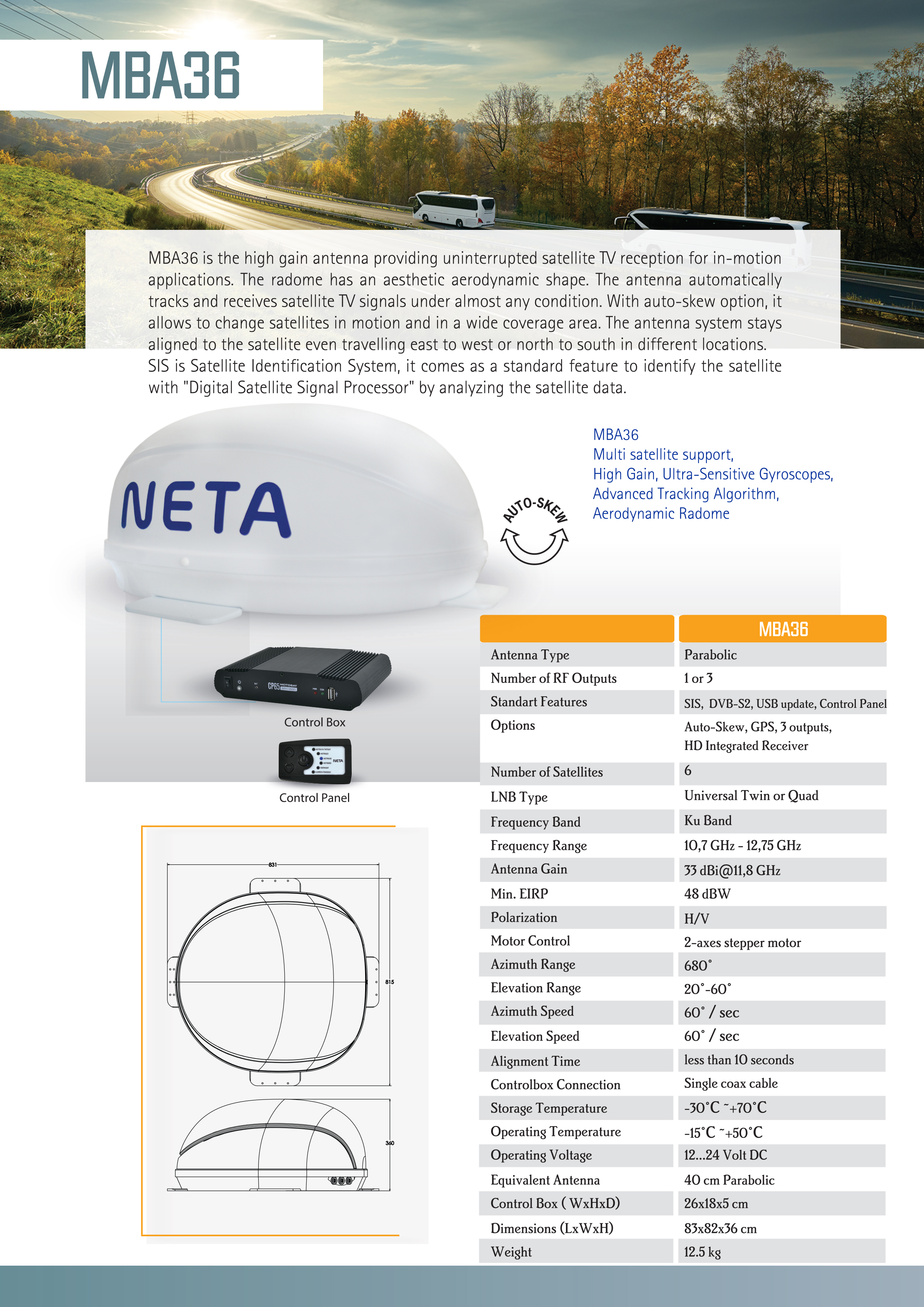

NETA MBA36

Mobilsat in-motion satellite antennas are designed for SUVs, VANs, buses and coaches. Their ultra-sensitive gyroscopes and advanced tracking algorithms ensure excellent performance even under hardest road conditions. The antenna and control box are connected with only one cable transmitting signal and power. The system includes a control box with an integrated HD satellite receiver. The multi-output option feature enables distributing the signal to different TVs. The aerodynamic dome with a low wind resistance works efficiently even in fast-moving vehicles. Where in-motion signal reception is not necessary, the “static” option offers a cost effective solution for stationary usage.

Overview

MBA36 is the high gain antenna providing uninterrupted satellite TV reception for in-motion applications. The radome has an aesthetic aerodynamic shape. The antenna automatically tracks and receives satellite TV signals under almost any condition. With Autoskew option it receives different satellites over a wide area of coverage. The antenna system stays aligned to the satellite even travelling east to west or north to south in different locations. SIS is Satellite Identification System, it comes as a standard feature to identify the satellite with "Digital Satellite Signal Processor" by analyzing the satellite data.

Specification



MBA36

Antenna Type

Parabolic

Number of RF Outputs

1 or 3

Standard Features

SIS, DVB-S2, USB update, Control Panel

Options

Auto Skew, GPS, 3 outputs, HD Integrated Receiver

Number of Satellites

6

LNB Type

Universal Twin or Quad

Frequency Band

Ku Band

Frequency Range

10,7 GHz - 12,75 GHz

Antenna Gain

33 dBi @11,8 GHz

Min. EIRP

48 dBW

Polarization

H/V

Motor Control

2-axes stepper motor

Azimuth Range

680°

Elevation Range

20° - 60°

Azimuth Speed

60°/sec

Elevation Speed

60°/sec

Alignment Time

Less than 10 secs

Controlbox Connection

Single coax cable

Storage Temperature

-30°C ~ +70°C

Operating Temperature

-15°C ~ +50°C

Operating Voltage

12...24 Volt DC

Equivalent Antenna

40 cm Parabolic

Control Box (WxHxD)

26x18x5 cm

Dimensions (LxWxH)

83x82x36 cm

Weight

12,5 kg
