NETA MRA60

Marinesat is an in-motion satellite antenna especially designed for boats, yachts and ships. The radome includes a motorized cassegrain antenna. When started, the system searches for satellite, finds and then tracks it by using its gyroscopes and microprocessor-controlled motors. The integrated GPS system enables the antenna to automatically detect its exact current position and then calculate the correct LNB angle required for the satellite. No user intervention is needed even if a different satellite is selected or the location of the antenna is changed. The system makes all necessary adjustments automatically. The control box enables the antenna to receive 16 different satellites. The antenna can be controlled with the control box unit provided with the system. Optionally the control box also functions as an HD satellite receiver. A common interface makes it possible to receive scrambled channels. The multi-output option can be used to distribute signals to different locations.

Overview

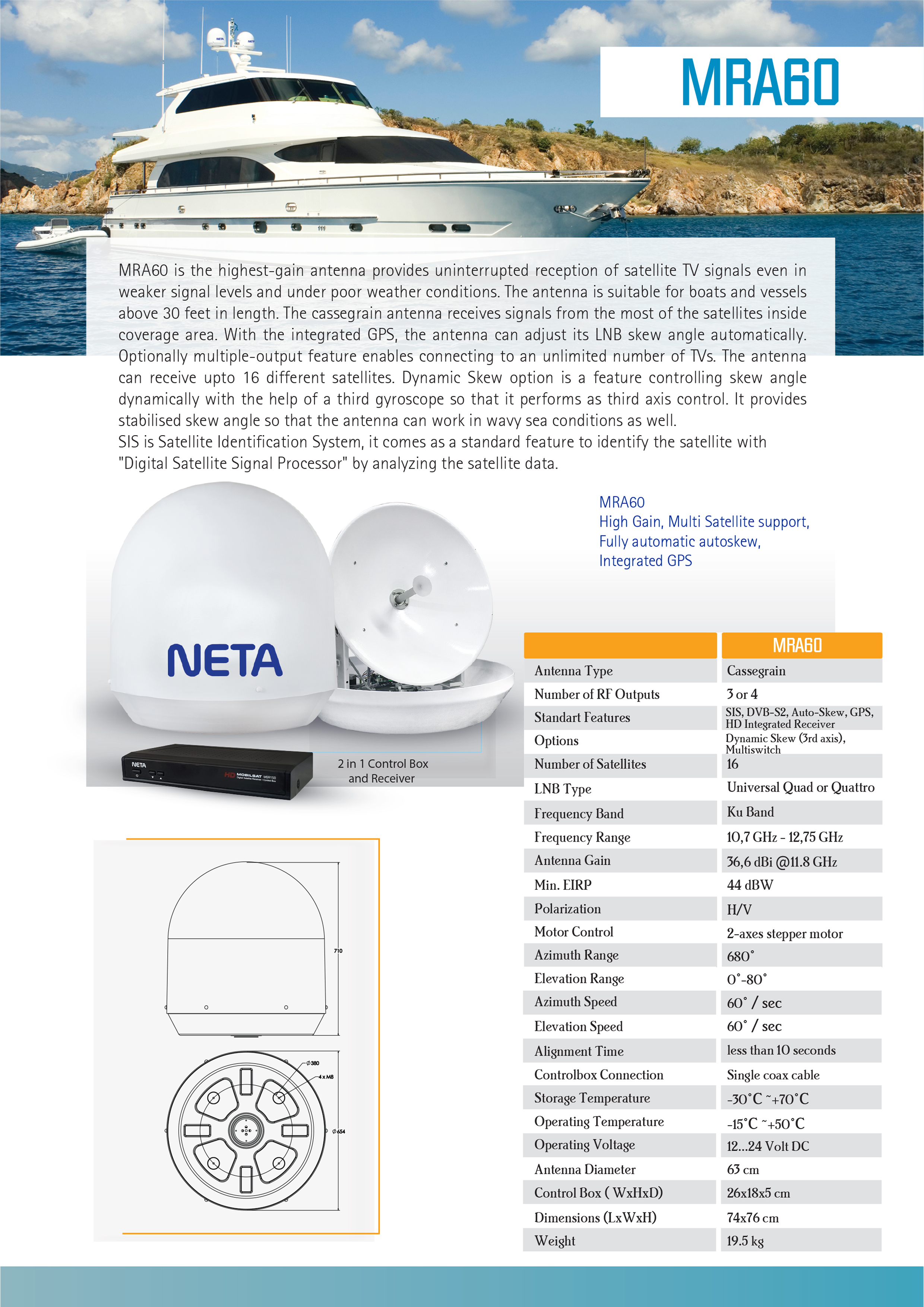

MRA60 is the highest-gain antenna provides uninterrupted reception of satellite TV signals even in weaker signal levels and under poor weather conditions.

The antenna is suitable for boats and vessels above 30 feet in length. The cassegrain antenna receives signals from the most of the satellites inside coverage area. With the integrated GPS, the antenna can adjust its LNB skew angle automatically. Optionally multiple-output feature enables connecting to an unlimited number of TVs. The antenna can receive upto 16 different satellites.

Dynamic Skew option is a feature controlling skew angle dynamically with the help of a third gyroscope so that it performs as third axis control. It provides stabilised skew angle so that the antenna can work in wavy sea conditions as well.
SIS is Satellite Identification System, it comes as a standard feature to identify the satellite with "Digital Satellite Signal Processor" by analyzing the satellite data.

Specification



MRA60

Antenna Type

Cassegrain

Number of RF Outputs

3 or 4

Standard Features

SIS, DVB-S2, Auto-Skew, GPS, HD Integrated Receiver

Options

Dynamic Skew (3rd axis), Multiswitch

Number of Satellites

16

LNB Type

Universal Quad or Quattro

Frequency Band

Ku Band

Frequency Range

10,7 GHz - 12,75 GHz

Antenna Gain

36,6 dBi @11,8 GHz

Min. EIRP

44 dBW

Polarization

H/V

Motor Control

2-axes stepper motor

Azimuth Range

680°

Elevation Range

0° - 80°

Azimuth Speed

60°/sec

Elevation Speed

60°/sec

Alignment Time

Less than 10 secs

Controlbox Connection

Single coax cable

Storage Temperature

-30°C ~ +70°C

Operating Temperature

-15°C ~ +50°C

Operating Voltage

12...24 Volt DC

Antenna Diameter

63 cm

Control Box (WxHxD)

26x18x5 cm

Dimensions (LxWxH)

74x76 cm

Weight

19,5 kg
